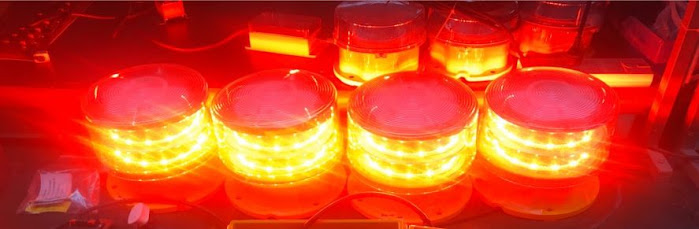

Medium Intensity Red Obstruction Light - ICAO Type C, Intensity 2.000cd, Night-Mode Red Steady Burning

-




Medium Intensity Red Obstruction Light - ICAO Type C, Intensity 2.000cd, Night-Mode Red Steady Burning

The red medium intensity obstruction lights are usually installed on towers, buildings, cranes, chimneys, windmills and other tall structures over 45 meters. It can work independently with self-controlled configurations (e.g., built-in photocell, alarm relay, flasher) as an economical solution. In most cases, one or more F864 medium intensity aviation warning lights group with multiple levels of low intensity obstruction lights as a system, controlled and monitored by a control box.

For more details:

Phone/WhatsApp: +0086-13929493960

Email: sophia@chendongtech.com

Website: http://www.cdt-en.com/


#led #aviation #safety #obstructionlight #aircraftwarninglight
