Surface-Level Heliport Lighting System & Elevated Heliports and Helideck Lighting System, LED Heliport Perimeter Light(TLOF,FATO Light), Floodlights, Heliport Beacon, Comply with ICAO and Certified by Intertek

-





The International Civil Aviation Organization (ICAO) outlines standards and recommendations for heliports serving single-main-rotor helicopters in Annex 14, Volume 2. These ICAO helipad standards apply to all heliports, including areas for the exclusive use of helicopters at an aerodrome primarily meant for the use of aeroplanes.

For more details:
  • HUNAN CHENDONG TECH CO., LTD
  • Tel:  +0086-0731-85563265
  • Fax: +0086-0731-85563365
  • Skype:  sophia.guo88
  • Phone/WhatsApp:  +0086-13929493960
  • Email:  sophia@chendongtech.com
  • Website:  http://www.cdt-en.com/

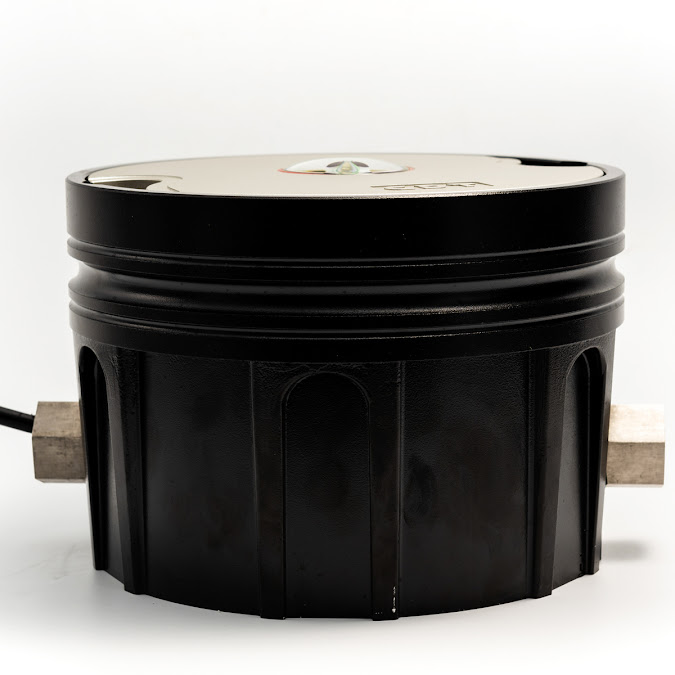

  • TLOF Lights
Uniformly spaced green omnidirectional lights along the TLOF perimeter, no more than 5 m apart.







  • Floodlights
May improve visibility for heliport operations. Install clear of the TLOF, FATO and safety area.









  • Heliport Beacon
Use a heliport beacon for difficult to identify or when long-range visual guidance is necessary.
