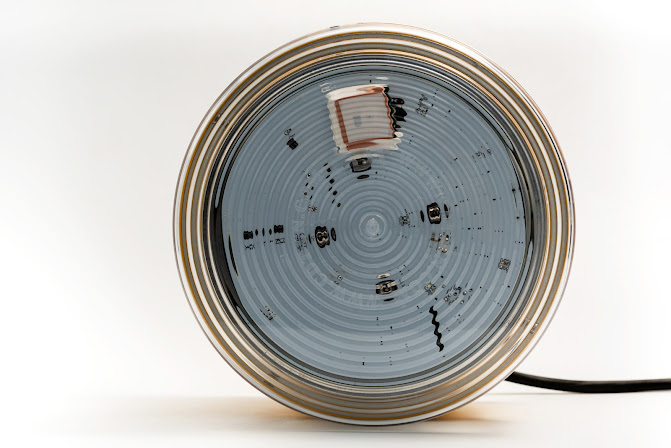

Medium Intensity LED Flashing Red Obstruction Light - FAA L-864 (Medium Intensity LED Flashing Red Obstruction Light 110-240VAC,12-48VDC with GPS Sync)

-

Medium Intensity LED Flashing Red Obstruction Light - FAA L-864 (Medium Intensity LED Flashing Red Obstruction Light 110-240VAC,12-48VDC with GPS Sync)

  • Model:CK-15
  • Operating Voltage:AC110-240V
  • Power consumption:≤8W
  • Flashing frequency:20～60times/min
  • Light intensity:2000cd（±25%）
  • Life span:＞100,000 hours
  • Emitting color:RED
  • Beam angle:360° horizontal,> 3° vertical
  • Method of synchronization:GPS
  • Overall size(mm):∅210mm×140mm
  • Installation size(mm):126mm×126mm×4-M10
  • Ingress protection:IP65
  • Lightning protection level:10KA
  • Operating temperature:-40℃～55℃
  • Net weight:2.1KG
  • Wind load:80m/sec.
For more details:
  • HUNAN CHENDONG TECH CO., LTD
  • Tel:  +0086-0731-85563265
  • Fax: +0086-0731-85563365
  • Phone/WhatsApp:  +0086-13929493960
  • Skype:  sophia.guo88
  • Email:  sophia@chendongtech.com
  • Website:  http://www.cdt-en.com/
