OBSTRUCTION LIGHTING CONTROLLERS AC/DC Power LED obstruction lighting system controllers reliably monitor low power LED obstruction lights

-


















COMPLIANCE AND APPLICATIONS

  • FAA AC 150/5345-43G

Our LED obstruction lighting outdoor controllers have been designed to reliably sense the proper operation of the latest low-power LED obstruction lights, with an array of dry alarm contacts to report on all aspects of system health.

Control boards have several functions

  • photoelectric switch management
  • fault management (automatic main/stand-by bulb switchover)
  • alarm management (remote transmission of alarms, generation of visual alarms)


According to the installation environment, control board electrical circuits are enclosed in spcefic housing box:

  • use: outdoor
  • material: aluminum alloy
  • protection: IP65

The following special functions may be present if required:

  • synchronisation of all the flashing obstruction lights in the system
  • on-board or external UPS

Parameter

Item Name                                   Aviation Obstruction Light Controller
Model CM-DKW
Operating Voltage AC110-240V/DC48V
Power consumption ≤10W
Flashing frequency 20-60 times/min
Load capacity ≤2000W
Number of control auxiliary lights 100 units
Ingress protection IP65
Controlled environment brightness 50-500lux
Altitude ≤4500m
Overall Size 280mm*250mm*85mm
Installation size 250mm*130mm*M4
Operating temperature -55℃～55℃
Net weight 2.5KG
Wind load 80m/sec.

Drawing


Installation

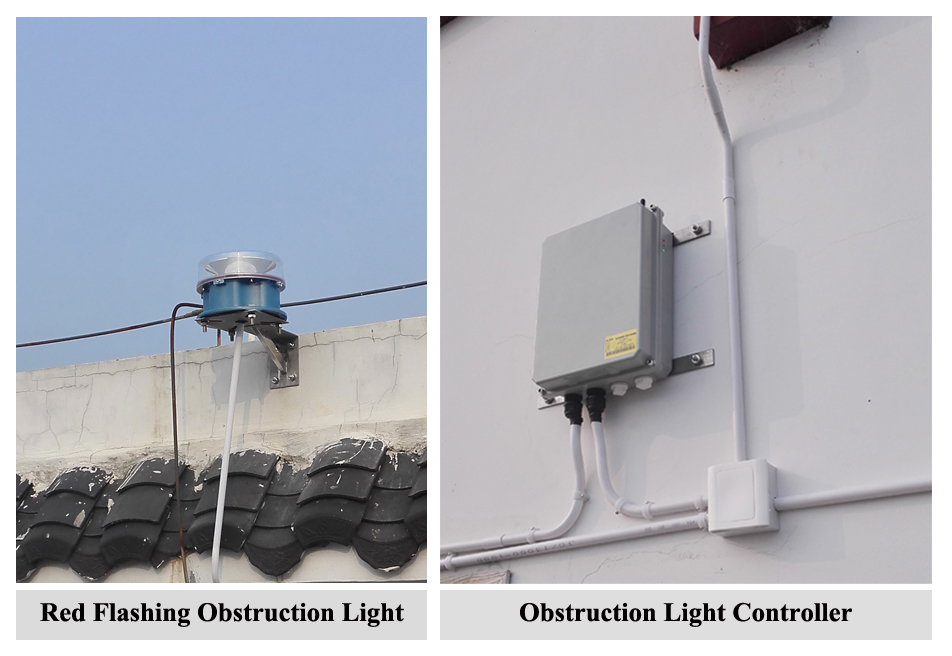

The System Controller is equipped with 2 sets of mounting brackets, mounted on angle steel. The installation is as shown below:
