Aircraft Warning Light System for 550KV High Voltage Power Line/Transmission Tower

-
SOLAR OBSTRUCTION LIGHTS FOR TRANSMISSION TOWERS
Obstruction Lighting Solutions
CHINA . Tibet

 Application: Permanent ICAO Medium Intensity Type A Obstruction Light for 550 kV electricity transmission towers
Aircraft Warning Light System(Solar Powered):

  • Medium Intensity Type A Obstruction Light
  • Mounting Bracket(obstruction light)
  • Lightning Rod
  • Junction Box
  • Controller Box(include battery)
  • Mounting Bracket(control box)
  • Solar Panel
  • Mounting Bracket(solar panel)
  • Cable
Date: 2019-9

Backgroud

The customer required an ICAO compliant day/night marking warning light system for transmission towers across the Tibet. The system needed to be low-cost, quick and easy to install and completely self-contained with an integrated power supply
A low-maintenance lighting system was also needed that wouldn’t require constant repairs or component replacement and that would run reliably for many years with minimal operator intervention. If maintenance was required however, the light fixtures or their components needed to be easily replaced without interrupting or effecting the tower’s operation or the performance of the lights on other towers close by.

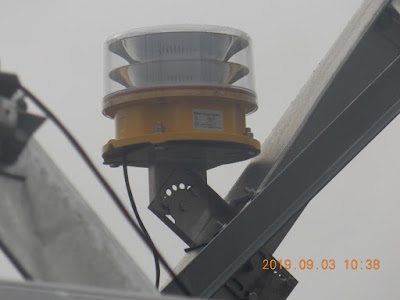

Medium Intensity Obstruction Light (MIOL), multi-LED type, compliant to ICAO Annex 14 Type A, FAA L-865 and ICAO, CAAC Certifed.

 This product is the ideal solution when looking for compact and lightweight obstacle light, realized with high quality products and with patented features.
CDT Medium Intensity Obstruction Light has been designed to be a compact and lightweight product; it can be easily installed on an horizontal surface thanks to its base or vertical surface thanks to its mounting bracket and a balance of patented lenses, electronics and mechanical components make this device the most reliable and high-quality LED Aircraft Warning Light available on the market.
Benefits

  • ICAO Certified, Medium Intensity Type Obstruction Light
  • Lightweight, completely self-contained fixture easily installed by a small crew
  • Fit-for-purpose, straight from the box
  • Robust and long-lasting
  • Over 100,000 hours of LED life
  • User-replaceable battery
  • GPS Sync available
  • Dual Type Available (1 duty + 1 stand-by)
The obstruction light is supported with solar panel, the battery supplied would be able to maintain the maximum luminous flux under the condition of dusty solar cells. The battery maintenance interval would not less than 10 years minimum . Photovoltaic panel output would be derated, over and above age de-rating, by 40%, on account of dust accumulation on the panel surface. The upper edges of the solar panels would be fitted with stainless steel needle strips, effectively preventing birds from sitting in these locations.

Obstruction Light Working Video
